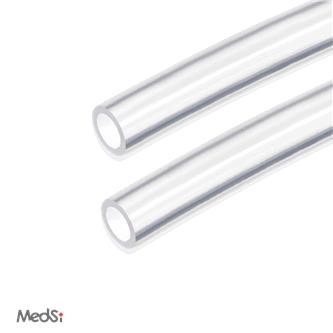

tubo de bomba

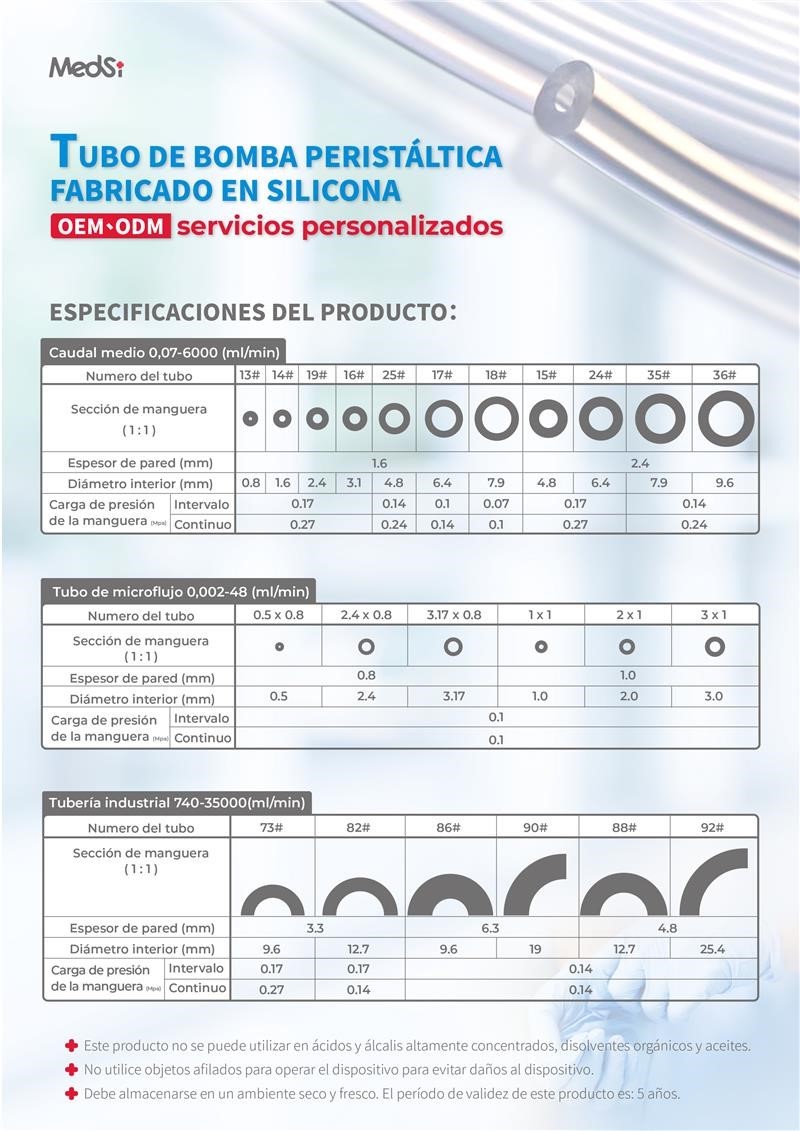

Caudal medio 0,07-6000 (ml/min)

．Number of the tube：13# / Wall thickness：1.6mm / Inner diameter：0.8mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.27Mpa

．Number of the tube：14# / Wall thickness：1.6mm / Inner diameter：1.6mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.27Mpa

．Number of the tube：19# / Wall thickness：1.6mm / Inner diameter：2.4mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.27Mpa

．Number of the tube：16# / Wall thickness：1.6mm / Inner diameter：3.1mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.27Mpa

．Number of the tube：25# / Wall thickness：1.6mm / Inner diameter：4.8mm / Pressure load of the hose (continuous)：0.14Mpa / Pressure load of the hose (interval)：0.24Mpa

．Number of the tube：17# / Wall thickness：1.6mm / Inner diameter：6.4mm / Pressure load of the hose (continuous)：0.1Mpa / Pressure load of the hose (interval)：0.14Mpa

．Number of the tube：18# / Wall thickness：1.6mm / Inner diameter：7.9mm / Pressure load of the hose (continuous)：0.07Mpa / Pressure load of the hose (interval)：0.1Mpa

．Number of the tube：15# / Wall thickness：2.4mm / Inner diameter：4.8mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.27Mpa

．Number of the tube：24# / Wall thickness：2.4mm / Inner diameter：6.4mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.27Mpa

．Number of the tube：35# / Wall thickness：2.4mm / Inner diameter：7.9mm / Pressure load of the hose (continuous)：0.14Mpa / Pressure load of the hose (interval)：0.24Mpa

．Number of the tube：36# / Wall thickness：2.4mm / Inner diameter：9.6mm / Pressure load of the hose (continuous)：0.14Mpa / Pressure load of the hose (interval)：0.24Mpa

Tubo de microflujo 0,002-48 (ml/min)

．Number of the tube：0.5 x 0.8 / Wall thickness：0.8mm / Inner diameter：0.5mm / Pressure load of the hose (continuous)：0.1Mpa / Pressure load of the hose (interval)：0.1Mpa

．Number of the tube：2.4 x 0.8 / Wall thickness：0.8mm / Inner diameter：2.4mm / Pressure load of the hose (continuous)：0.1Mpa / Pressure load of the hose (interval)：0.1Mpa

．Number of the tube：3.17 x 0.8 / Wall thickness：0.8mm / Inner diameter：3.17mm / Pressure load of the hose (continuous)：0.1Mpa / Pressure load of the hose (interval)：0.1Mpa

．Number of the tube：1 x 1 / Wall thickness：1.0mm / Inner diameter：1.0mm / Pressure load of the hose (continuous)：0.1Mpa / Pressure load of the hose (interval)：0.1Mpa

．Number of the tube：2 x 1 / Wall thickness：1.0mm / Inner diameter：2.0mm / Pressure load of the hose (continuous)：0.1Mpa / Pressure load of the hose (interval)：0.1Mpa

．Number of the tube：3 x 1 / Wall thickness：1.0mm / Inner diameter：3.0mm / Pressure load of the hose (continuous)：0.1Mpa / Pressure load of the hose (interval)：0.1Mpa

Tubería industrial 740-35000(ml/min)

．Number of the tube：73# / Wall thickness：3.3mm / Inner diameter：9.6mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.27Mpa

．Number of the tube：82# / Wall thickness：3.3mm / Inner diameter：12.7mm / Pressure load of the hose (continuous)：0.17Mpa / Pressure load of the hose (interval)：0.14Mpa

．Number of the tube：86# / Wall thickness：6.3mm / Inner diameter：9.6mm / Pressure load of the hose (continuous)：0.14Mpa / Pressure load of the hose (interval)：0.14Mpa

．Number of the tube：90# / Wall thickness：6.3mm / Inner diameter：19mm / Pressure load of the hose (continuous)：0.14Mpa / Pressure load of the hose (interval)：0.14Mpa

．Number of the tube：88# / Wall thickness：4.8mm / Inner diameter：12.7mm / Pressure load of the hose (continuous)：0.14Mpa / Pressure load of the hose (interval)：0.14Mpa

．Number of the tube：92# / Wall thickness：4.8mm / Inner diameter：25.4mm / Pressure load of the hose (continuous)：0.14Mpa / Pressure load of the hose (interval)：0.14Mpa
